MAKITA DHR242RTJW
18V BRUSHLESS SDS PLUS ROTARY HAMMER DRILL 24MM KIT WITH 2X5.0AH
BATTERIES, CHARGER, MAKPACK TYPE 4 CASE & DX06 DUST EXTRACTION
SYSTEM

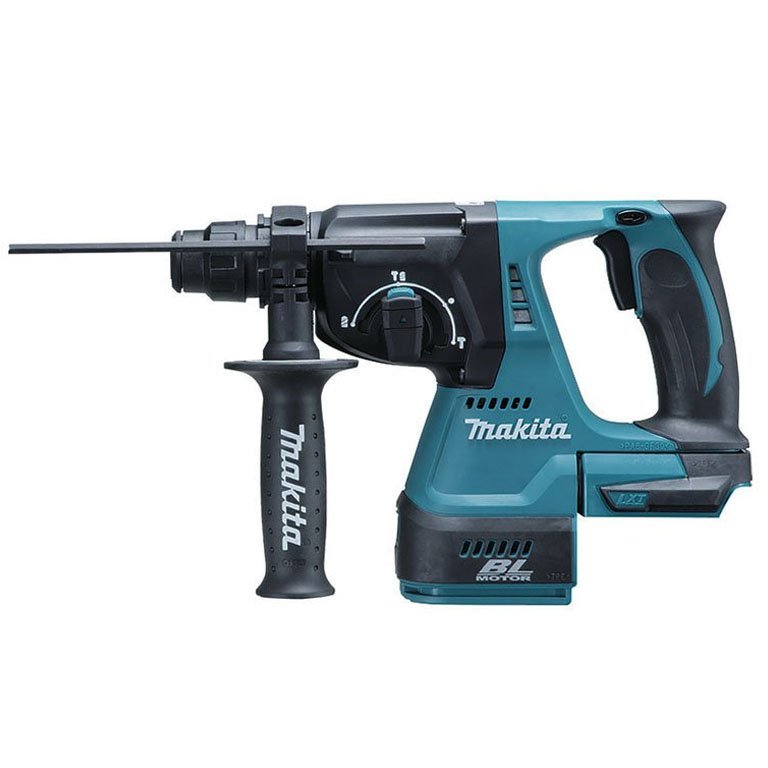

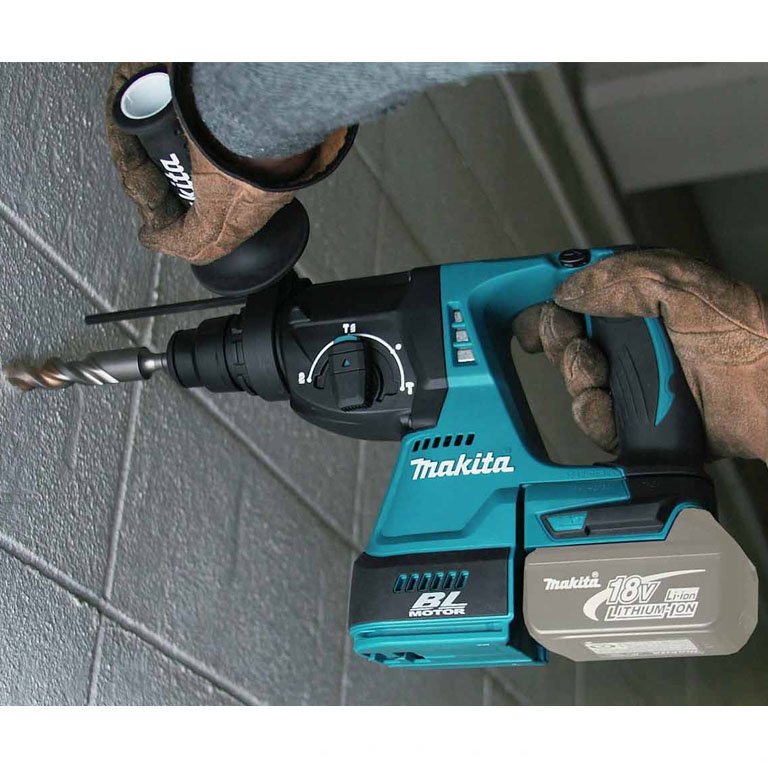

DHR242Z Brushless SDS Drill Features
The Makita DHR242 models are 24mm (15/16") Cordless Combination Hammers powered by 18V Li-ion Battery. This is a 3 mode machine with rotary hammer for masonry drilling, hammer only for masonry chiselling and rotary only for drilling wood and steel and features variable speed and reverse.
Although it is an 18V hammer, it is able to drill in concrete as faster than 24V Cordless Combination Hammer model BHR200.
The DHR242 features a brushless DC motor which reduces energy loss by 30% giving longer battery run time and saves maintenance. A rubberised rear D grip and side handle make this tool extremely well balanced and comfortable to use and at just 3.3kg it is suitable for prolonged use.
This machine will also accept the DX01 HEPA filter which attaches to the main unit and effectively traps all particle sizes with an efficiency rating of 99.75%.

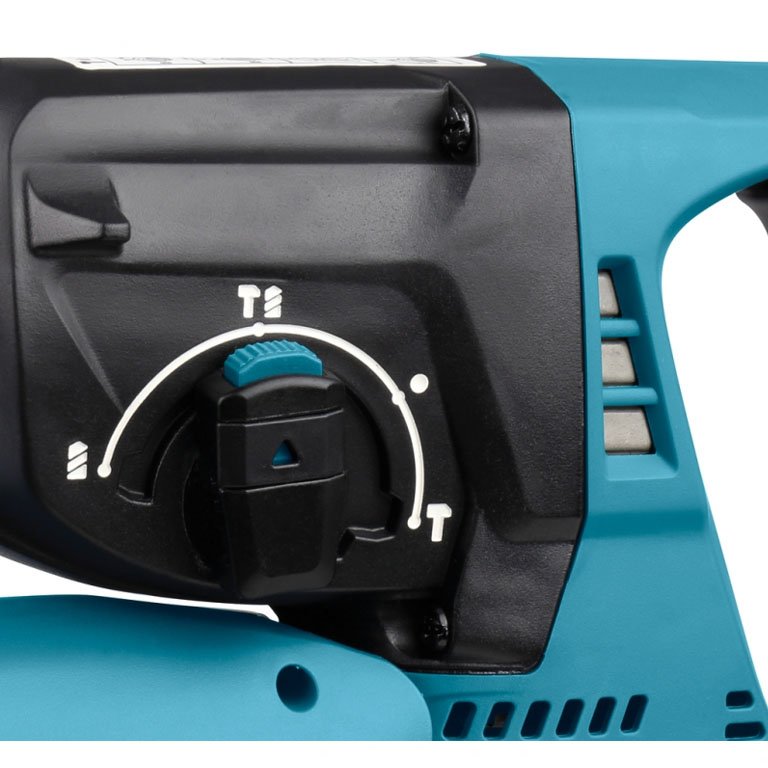

- 3 mode operation • Rotation + Hammering • Hammering only • Rotation only
- One touch slide chuck for SDS-plus bit.
- BL motor delivers 0-950 RPM and 0-4,700 BPM
- Ergonomically designed vibration absorbing handle and a large 2-finger trigger for operator comfort
- Easy-to-grip handle ergonomically designed to: Give maximum power thrust.
- Chisel rotates 360° with 40 different positions
- Able to drill in concrete as fast or faster than 24V Cordless Combination Hammer model BHR200.
- The tool body is seperated into the upper and lower housings at the foot of handle portion where the houses are jointed with vibration absorbing cushion rubbers.
- Higher productivity than model BHR202 achieved by using efficient Brushless DC motor to reduce energy loss by 30%
- Unique rubber joint construction suppresses the transmission of vibration to battery terminals, minimizing battery failures such as terminal breakage or poor electrical contact.

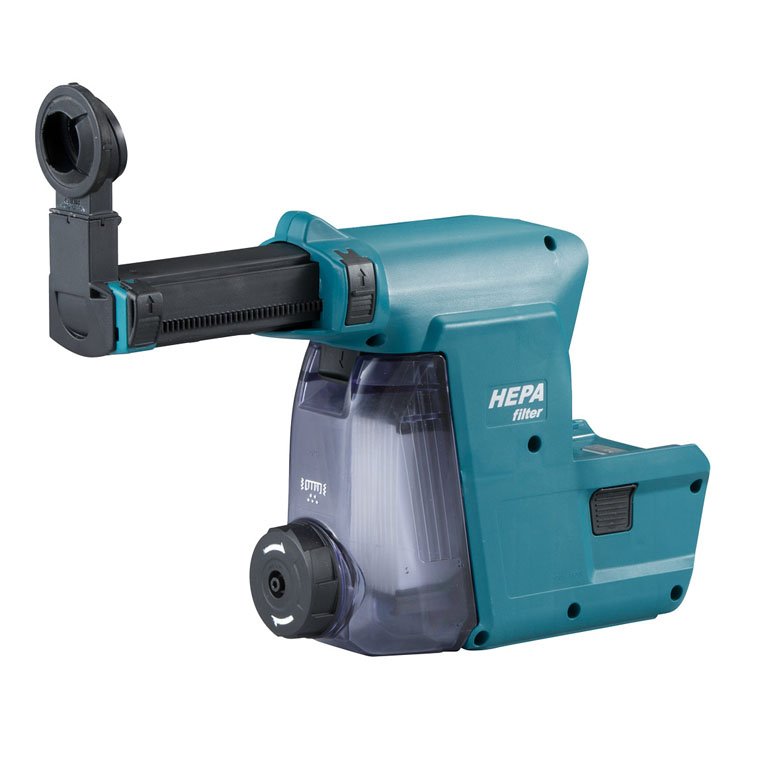

DX06- Dust Extractor Attachment with HEPA Filter Features

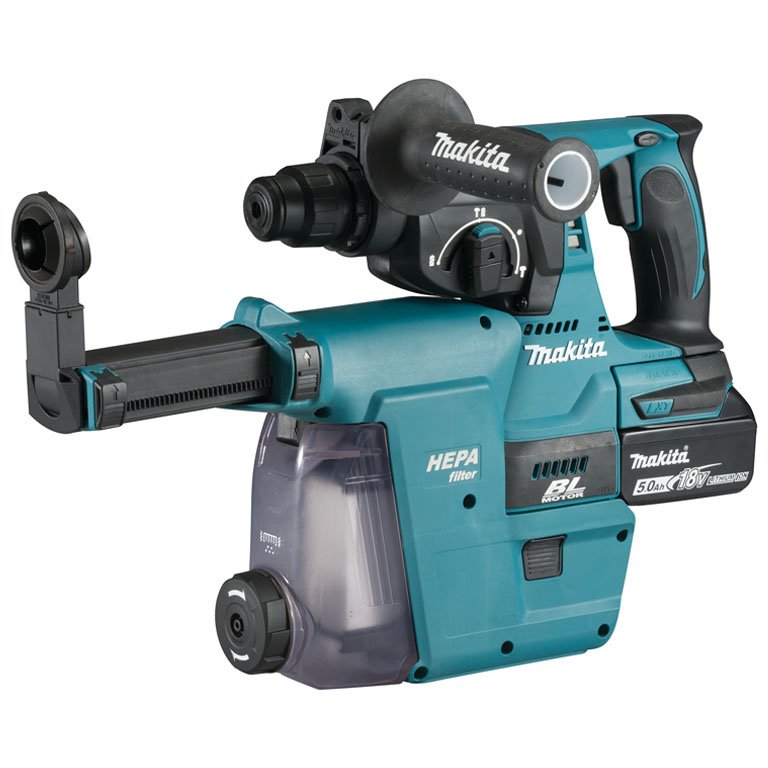

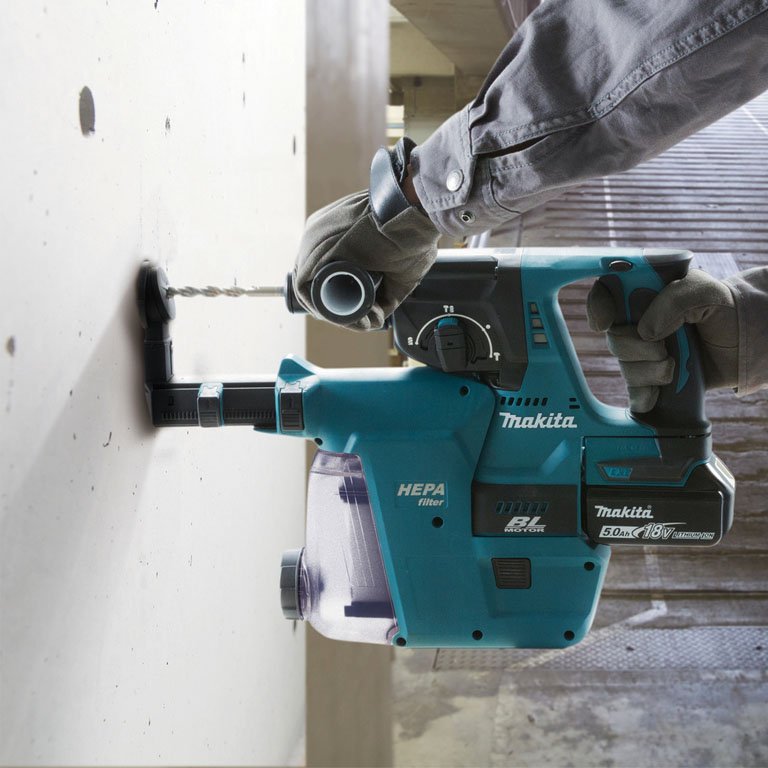

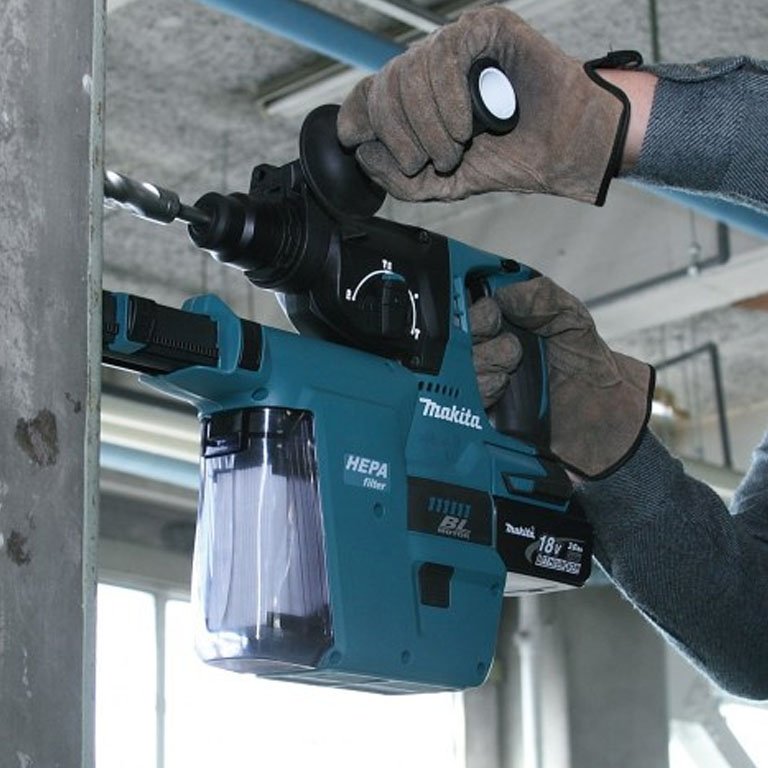

The Makita 199563-2 DX06 dust extractor is compatible with the DHR242 18v brushless rotary hammer drill. This system is compact and slides on to and takes its power from the DHR242 and automatically operates when the drill is turned on.
Include a HEPA filter which traps all particle sizes with an efficiency rating of 99.75%, large dust box with button opening for easy emptying and a slide adjustment for different size drill bits.
This new version also now features a new dust dial that removes excess dust from the filter to maintain vacuum efficiency and performance.
The extractor is powered by the same battery as the drill so no additional weight or wires are required.
- One touch easy attachment/removal
- Turn the dial to impact the filter case releasing the dust from the filter
- Transparent dust case
- Filter cleaning mechanism

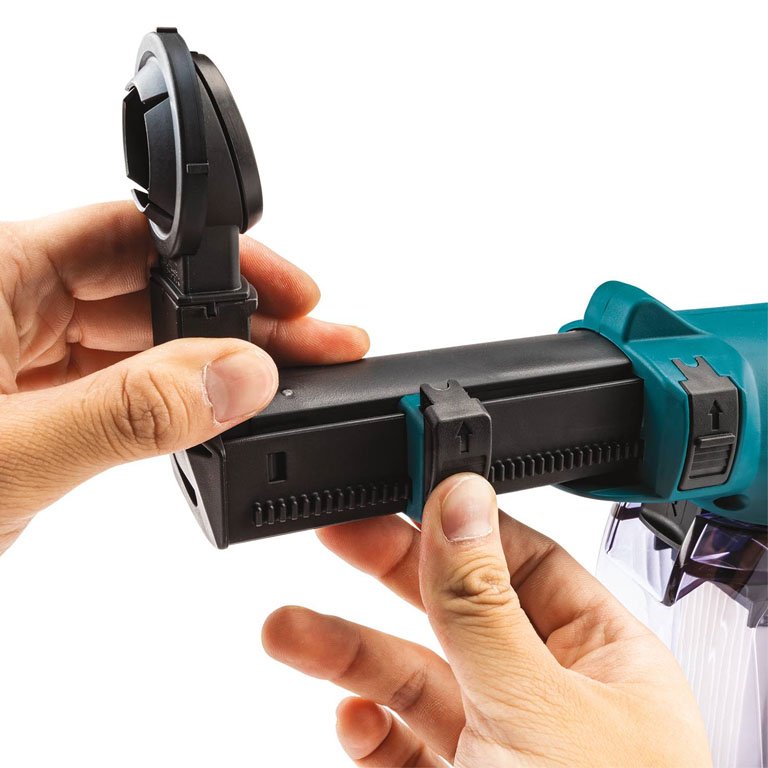

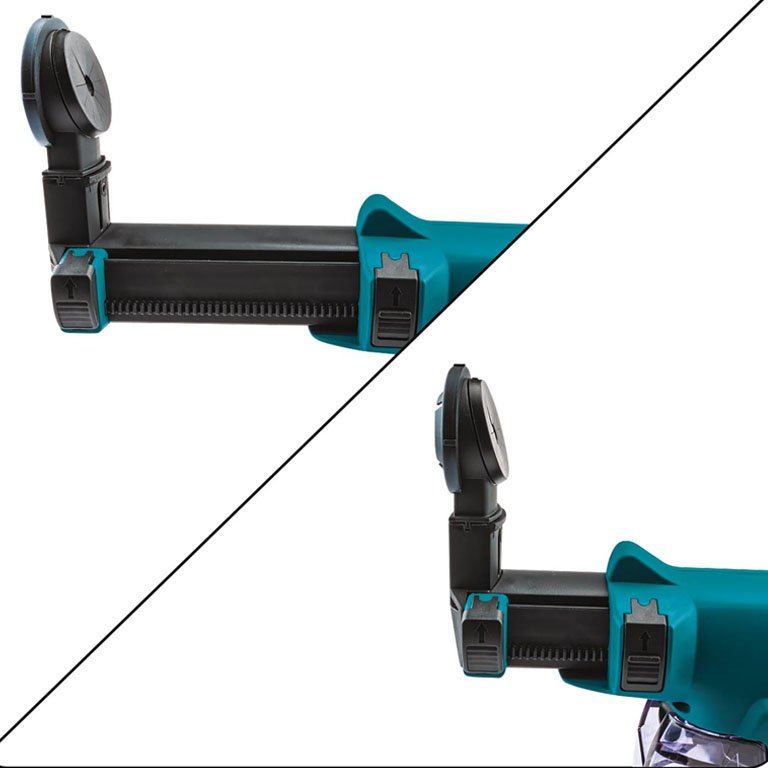

- 2 Stage Dust Extraction Nozzle - Stage 1 drill bits 110 mm to 165 mm / Stage 2 drill bits 210 mm to 265 mm
- Adjustable depth stop - with 5 mm increments
- Depth Gauge
- Large dust box cover
- DX Extractors - Powered by a separate motor allowing the rotary hammer to maintain peak drilling performance
Dust filter cleaning dial:
- Removes excess dust from filter
- Maintains vacuum efficiency and performance
BL1850 18V 5.0ah Batteries Features
- Built in memory chip communicates the usage history with the charger
- Built in shock absorbers protect the cells from jobsite conditions
- High energy cells pack more power per cell to reduce number of cells and overall weight
- Large release button for easy removal from the tool
- Built in air vents and wall cools the battery cells evenly whilst blocking damaging debris
- 16 contact terminals provide consistent power and firm hold in any environment
- The DC18RC has a cooling fan and Active 3 Controls. This means that during the loading of the charging voltage, charging current, and temperature is held in the holes.
- The cooling system blows cool air into the battery. As a result, high temperatures occur in the battery, so that the battery life is extended, and the charging process is accelerated.
- When used in conjunction with charging adapter ADP03 this charger offers also the possibility of charging Ni-MH slide on batteries of 9.6V to 24V batteries or when used with charging adapter ADP04 this charger offers the possibility to charge Ni-Cd and Ni-MH rod and block batteries of 7.2V to 18V batteries
MakPac Type4 Carry Case Features
The Makita MAKPAC Type-4 Carry Case with connecting clips, compatible with other makes of case systainer. Has the following dimensions:
- Length: 396mm, Width: 296mm Height: 315mm.
